Novus Spectra®

High-powered photocoagulator

Versatile | Portable | Powerful

The Lumenis Novus Spectra® is an innovative photocoagulator with an extensive set of features that deliver power and reliability with proprietary advancements in diode-pumped solid-state  technology.

Next-generation DPSS technology drives 2.5 W of power from the compact Novus Spectra system and an active resonator temperature control ensures stable beam output and system reliability. Versatile, efficient and compatible with a wide-array of delivery devices, the Novus Spectra was designed to provide optimal results in the operating room and outpatient clinic.

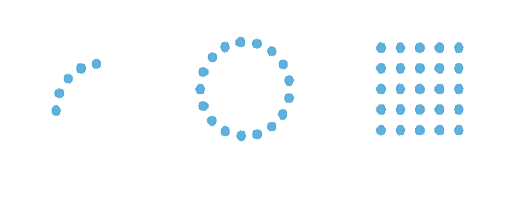

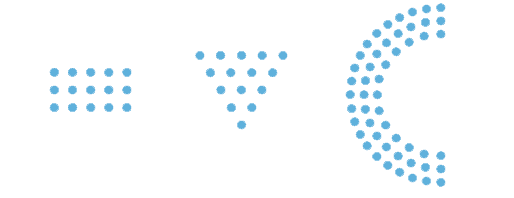

Scanner Ready

OR Features:

  • Egronomic & Compact OR Cart: with built-in storage for accessories
  • Remote control: conveniently adjust laser parameters
  • PowerEase™ Footswitch: hands-free power adjustment

Clinic Features:

  • Compatible with your preferred Slit Lamp
  • Compact, lightweight and space-saving
  • Patented SureSpot Optics
  • Designed for the busy practice with high patient throughput

CLINIC FEATURES

Ideal Product for the Clinic

PowerEase™ footswitch:

Provides hands-free power adjustment of the laser by toggling left or right within the footswitch housing.

LIO:

Choose a Laser Indirect Ophthalmoscope that suits your preferences. Both our Heine™ and Keeler™ models are rugged, lightweight and equipped with the most advanced laser delivery technology in the market.

Laser Links:

The Lumenis family of LaserLink Slit Lamp adapters will transform most commercially available slit lamps into advanced laser delivery devices with superior optics capabilities.

Eye Safety Filters:

A selection of automatic and fixed eye safety filters for the Slit Lamp with the Lumenis patented ClearView™ technology. The photopic balanced coating eliminates color distortion of the treatment site while optimizing white light transmission or “brightness” of the physician’s view.

OR FEATURES

The Ideal Product for the OR

Endo Probes:

A comprehensive and wide selection of ophthalmic probes to meet every clinical need and indication. These include standard, straight, curved, aspirating, illuminating and stepped in 20, 23 and 25 gauge sizes.

Endo Kit:

Surgical microscope eye safety with the Lumenis patented ClearView™ technology. The photopic balanced coating eliminates color distortion of the treatment site while optimizing white light transmission or “brightness” of the physician’s view.

PowerEase™ Footswitch:

The Lumenis *PowerEase™ footswitch provides hands-free power adjustment of the laser by toggling left or right within the footswitch housing.

The Novus Spectra Advantage

  • Superior Optics – Homogeneous laser spot at target tissue Our advanced optics and laser delivery technology features uniform energy distribution across the entire laser spot area for more precise and safer treatment. The result is a homogenous laser spot with evenly distributed power across the full area of the spot, eliminating the potential risk for the formation of “hot spots”.
  • ClearView™ Filters – Optimized view of treatment site The Lumenis ClearView™ filters’ photopic balanced coating eliminates color distortion of the treatment site while optimizing white light transmission or “brightness” of the physician’s view. A proprietary coating protects the filter from environmental changes and scratches.
  • User-Friendly – Control Panel & Remote Keypad A control panel and illuminated remote keypad* put all operations literally at your fingertips. Optional accessories include the PowerEase™ and Smart™ footswitches
Laser System Diode-pumped solid-state
Wavelength 532 nm
Pulse Duration Pulse Duration .01-3.0 seconds
Pulse Rate .05-1.0 seconds and single pulse
Energy Settings 50 mW to 2500 mW out of an endo-ocular probe
Spot Size 50-1000 microns with Laserlink Z-1000,50-500 microns with Converging-Optics Laserlink
Aiming Beam Contrasting color,adjustable intensity 635 nm nominal, < 1.0 mW
Cooling System Air-cooled
Power Requirements 110 VAC,< 6A, 50/60 Hz,Single phase,220 VAC,< 3A, 50/60 Hz,Single phase
Dimensions (Console) Single Port 15.2cm (6in.) x 25.4cm {lOin.) x 35.6cm {14in.) Dual Port 15.2cm (6in.) x 25.4cm (lOin.) x 37.5cm (14.5in.)
Weight 8 kg or 17.5 lbs
Delivery Systems Laserlink Z-1000 Slit Lamp Adaptor (for Zeiss* SL 130,30SL,20SL and 125Sl); Converging Optics Laser link, Keeler* Heine* LIO Comprehensive selection of standard, straight, curved,aspirating,illuminating and stepped endophotocoagulation probes in 20,23 and 25 gauge sizes,among others
Physical characteristics Height 15.2 cm (6 in), Width 25.4 cm (10 in),Depth (Single port system) 35.6 cm (14 in), Depth (Dual port system) 37.5 cm (14.5 in), Weight 8 kg (17 lb)

Vision one With SureSpotTM Optics

Sharply defined and evenly distributed power on the retina;
Safe & low-power density at the cornea and lens

Vision One incorporates SureSpotTM Optics Technology in all slit lamp adapters, as with all Lumenis photocoagulators.

The unique and patented Lumenis SureSpotTM technology ensures that the focal point of the laser beam is maintained on the retina while power density on the cornea and lens is minimized for increased safety.

SureSpotTM optics also creates a 50µ single spot. That capability distinguishes Lumenis technology from other

lasers that may have a 100µ minimum spot size and/or project a fuzzy laser spot on the ina.

SureSpotTM optics improves treatment efficacy and precision while reducing the potential for damage to anterior-segment tissues. The latter occurrence is especially a concern when using wide-angle lenses that enhance light uptake by the cornea and lens.

Related Links
Photodisruptors

Caution: Federal (US) law restricts Lumenis devices to sale by or on the order of a licensed practitioner.

PB-2006798 Rev A
