Selective Laser Trabeculoplasty (SLT) for Glaucoma treatment

Laser Procedures for Glaucoma

Maximum flexibility; minimum footprint

The Lumenis Selecta® Trio™ represents the next generation of multi-modality products, offering retinal, cataract and advanced glaucoma therapies in a single platform. The unit’s integrated design, enhanced optics system and advanced laser cavity make the Trio one of the highest performing laser products in the market – maximum flexibility with minimum footprint.

Selecta Digital Trio - Laser Procedures for Glaucoma, retina and cataract

Product Benefits

The Selecta Trio has all of the advantages of the Selecta Duet in SLT and YAG modes – along with proprietary advantages in photocoagulation mode

  • Homogeneous Laser Beam
    Our advanced optics and laser delivery technology features uniform energy distribution across the entire laser spot area for more precise and safer photocoagulation treatment. The result is a homogenous laser spot with evenly distributed power across the full area of the spot, eliminating the potential risk for the formation of “hot spots”.
  • Dual Fiber Port – Instantly switch between delivery devices
    Changing delivery devices is fast and easy. The Novus Spectra automatically senses the delivery devices connected to it. Laser parameters are adjusted internally to compensate for the chosen delivery device to maintain selected power density on the target tissue.
  • ClearView™ Filters – Optimized view of treatment site
    The Lumenis ClearView™ filters’ photopic balanced coating eliminates color distortion of the treatment site while optimizing white light transmission or “brightnes optimizing light transmission. The Selecta Duet and or Trio have a built in Physician Eye Safety Filter, that protect the user from both the YAG and Photocoagulation laser wavelengths.
  • AcuGuide™ Micromanipulator
    Accurate and safe laser beam guidance for fine-tuned laser application on target tissue.
  • Integrated LaserLink Cradle
    Safely and conveniently stow the laser adapter when not performing photocoagulation.

Additional Features

  • Storage Space
    The Selecta table is equipped with built-in compact storage space for lenses or other accessories.
  • Ergonomic Joystick with EZGrip™ Coating
    The ergonomically designed joystick includes a convenient integrated laser fire-switch.
  • Advanced Adjustable Offset
    The Selecta features 3 posterior defocus positions with an adjustable focal point of up to 350 posterior to the aiming beam.
  • Magnification Changer
    The Selecta full Slit Lamp function includes a 6-step magnification changer.
  • Electronic Height Adjustment
    The Selecta table height can be easily adjusted using its electronic up/down switch.
Smart Selecta Trio features

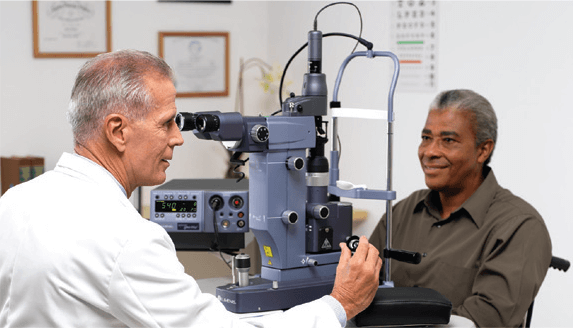

a doctor utilizing Smart Selecta Trio device
  YAG Photodisruptor Mode SLT Mode Photocoagulator Mode
Laser Source Q-Switched Nd:YAG Q-Switched Frequency Doubled Nd:YAG Diode-Pumped Solid State (DPSS)
Wavelength 1064nm 532nm 532nm
Energy (power) 0.3mJ - 10mJ per pulse 0.3 - 2.0mJ per pulse, continuously variable in 0.1 increments 50 - 2500mW
Pulse Duration 3ns (nanoseconds) 3ns (nanoseconds) 0.01 - 3 seconds
Burst Mode 1, 2 or 3 pulses per burst (selectable) Single Pulse Not Applicable
Spot Size 8 microns 400 microns 50 - 1000 on Z-Link; 5-500 on Convrg-Link
Cone Angle 16 degrees < 3 degrees Not Applicable
Posterior Offset 0 - 350 microns (continuously variable) Not Applicable Not Applicable
Repetition rate 3Hz (in single burst) 3Hz Not Applicable
Pulse Rate Not Applicable Not Applicable 0.05 - 1 second & Single Pulse
Aiming Beam Red Diode, continuously variable adjustable intensity Red Diode, continuously variable adjustable intensity Red Diode, continuously variable adjustable intensity
Cooling Air Cooled Air Cooled Air Cooled, enhanced with TEC
Electrical Requirements 100 -240 VAC, 50/60 Hz, 3.15 Amps 100 -240 VAC, 50/60 Hz, 3.15 Amps 100 -240 VAC, 50/60 Hz, 3.15 Amps
CDRH Classification FDA IIIb FDA IIIb FDA IIIb
a doctor using SLT

Lumenis First Class Quality

Our passion for opthalmic lasers date back more than 40 years! At Lumenis, we truly understand multi-wavelength photo-coagulation-technology; that is after all only one of the privileges reserved for the foremost pioneer in this field. It is also precisely the reason why the decisive majority of general ophthalmologists and retina specialists around the globe have actively chosen to purchase Lumenis multi-color lasers – making Lumenis the global market leader and the company with the largest installed-base of multi-color ophthalmic laser products worldwide.

Learn About SLT

Lumenis Ophthalmology Devices

Related Links

Caution: Federal (US) law restricts Lumenis devices to sale by or on the order of a licensed practitioner.

PB-2006798 Rev A
