The Technology Behind The DESIRE
Great clinical results begin with the LightSheer DESIRE 805 nm diode laser empowered by two advanced technologies
- Vacuum Assisted High-Speed Integrated Technology A large 22×35 mm spot size enables the use of low-fluence and with a unique mechanism for pain reduction provides effective, fast and comfortable treatment.
- ChillTip™ Technology – Integrated contact cooling provides epidermal protection for treatment areas requiring precision and higher fluence.
3 Handpieces For Treating All Body Areas
The HS has a HIT 22x35mm spot size enabling use of low-fluence and a unique mechanism of pain reduction, providing, fast and comfortable treatment.
The XC has a Sapphire ChillTip spot size of 12x12mm, providing a solution for large and small areas requiring higher fluence levels
The ET has a Sapphire ChillTip spot size of 9x9mm designed to treat small areas that require maximum precision and higher fluence.
Cutting Edge Technologies

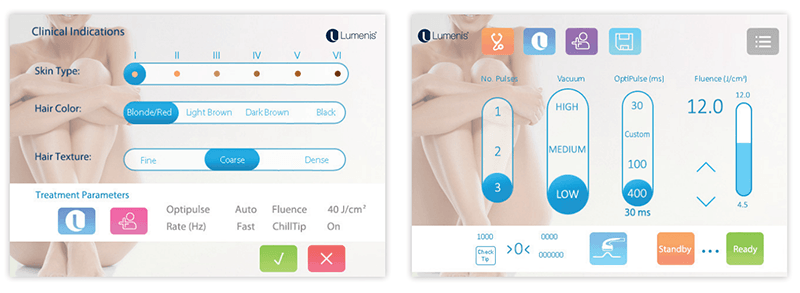

Advanced Graphical User Interface
Intuitive presets for fast learning curve and easy treatment delegation.
- Hair removal, permanent hair reduction, and the treatment for Pseudo Folliculitis Barbae (PFB).
- Treatment of vascular lesions, including angiomas, hemangiomas, telangiectasia, leg veins and other benign vascular lesions.
- Treatment of benign pigmented lesions.
| Platform | LightSheer DESIRE | ||
|---|---|---|---|
| HandPiece | HS | XC | ET |
| Technical Specifications: | |||
| Laser Type | AIGaAs Diode Arrays | AIGaAs Diode Arrays | AIGaAs Diode Arrays |
| Wavelength | 805 nm (nominal) | 805 nm (nominal) | 805 nm (nominal) |
| Spot Size | 22 mm X 35 mm | 12 mm X 15 mm | 9 mm X 9 mm |
| Repetition Rate | Up to 3 Hz | Up to 3 Hz | Up to 3 Hz |
| Pulse repetition | 1-3 Pulse | 1 Pulse | 1 Pulse |
| Fluence | 4.5-12 J/cm2 | 10-40 J/cm2 | 10-100 J/cm2 |
| Pulse Width(OptiPulse) | 30-400ms | 5-400 ms | 5-400 ms |
| Peak Power | 2310 W | 1920 W | 1620 W |
| Comfort Management | Vacuum assist (up to 18 in Hg) | Chilltip contact cooling (5°C) | |
| Preset Parameters | Yes | Yes | |
| Platform Specifications : | |||
| Electrical | 100-240 VAC +/- 10% , 12 A max. | 50/60 Hz. | Single-phase grounded outlet | ||
| Weight | 32 kg(70.5 lbs.) | ||
| Dimensions (WxDxH) | 51 x 60 x 42 cm; (20.1 x 23.6 x 16.55 in) | ||
PB-00005640 Rev A
