Array LaserLink^TM

Pattern Scanning Laser Technology

Lumenis introduces Array^TM LaserLink^TM a technologically advanced delivery system that significantly enhances standard laser treatment by providing new pattern scanning capabilities to photocoagulation lasers and considerably reducing treatment time. Array offers a range of laser spot sizes from 50µm to 1000µm in single spot mode, 100µm to 500µm in pattern scanning mode.

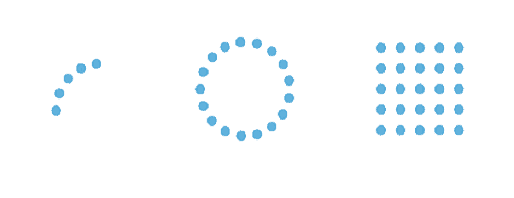

Examples of Laser Scan Pattern Shapes 1

Examples of Laser Scan Pattern Shapes 2

Examples of Scan Pattern Shapes

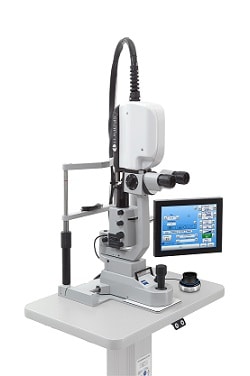

Array LaserLink - Pattern Scan Laser Technology

The Array^TMLaserLink^TM Features The Following Benefits:

Compatibility

Links with Lumenis lasers:

Vision One
Novus Spectra

And attaches to most popular slit lamps:

Lumenis 980
Lumenis 990*
Zeiss SL130
Zeiss 30SL
Haag Streit 900 BQ*

Versatility

With Lumenis multi-wavelength technology, Array delivers any of-following wavelengths:

Green: 532 nm
Yellow: 577 nm
Red: 659 nm

Array treatment options:

Single spot
Pulse mode
Various pattern

Array offers a range of laser spot sizes from 50µm to 1000µm in single spot mode, 100µm to 500µm in pattern scanning mode.

*May have a later release

Sendibility

Intuitive touchscreen
presents logical workflow;
Custom Touchpad
is easily moved for use with right or left hand and provides Eyes Forward Control
Heads Up Display
seen as text on the retina, shows confirmation of important parameter changes
Frame Mode
displays a precise outline of the area in which the pattern will be administered
Titrate Mode
is used to establish appropriate pattern laser parameters with a single spot
Contact lens menu
lists commonly used lenses for calculation of laser spot size on the retina Spot size on retina tells doctor actual parameter of treatment

The Array^TMLaserLink^TM is compatible with Lumenis Vision One and Novus Spectra.

And, attaches to most popular slit lamps:

Lumenis 980
Lumenis 990*
Zeiss SL130
Zeiss 30SL
Haag Streit 900 BQ*

The Array^TMLaserLink^TM is versatile. With Lumenis multi-wavelength technology.

Array delivers any of the following wavelengths:

Green: 532 nm
Yellow: 577 nm
Red: 659 nm

Customized Treatment to Meet the Patient and Physician Needs

Continuously Variable Spot Size

Single spot from 50µm to 1000µm
Pattern mode from 100µm to 500µm
For customized treatment for the particular disease state and tissue response

Selectable Spot Spacing

From 0 to 3 times the spot diameter within a circle
From 0.25 to 3 times the spot diameter in other patterns

Variety of Adjustable Patterns includes single spot and 6 shapes

Square: 2 to 5 spots per side
Line: 2 spots in one line up to 4 spots in each of 5 lines
Triangle: 6 or 15 spots
Circle: Single adjustable ring
Quarter of a circle: 1 or 3 adjustable arcs
Half of a circle: 1 or 3 adjustable arcs

Up to 5 Preset Protocols

Retain favorite settings in memory
Include settings such as fundus lens selection, laser power, spot size, spot spacing, number of spots and duration

New Generation Clearview Filters

Utilize photopic balanced coating to eliminate color distortion
Optimize white light transmission or “brightness” of the physician’s view

Patented SureSpot^TM Optics

Ensures that the focal point of the laser beam is maintained on the retina
Minimizes power density on the cornea and lens for increased safety

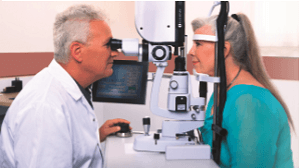

Eyes Forward Control

Array LaserLink Eyes Forward Control

Eyes Forward Control

Control and verify treatment parameters without moving from the slit lamp oculars or losing sight of the target retina

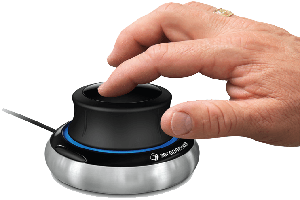

Unique Array 3D Micromanipulator

Unique Array 3D Micromanipulator

Controls laser parameters and micromanipulation
Adjustable for left or right hand use

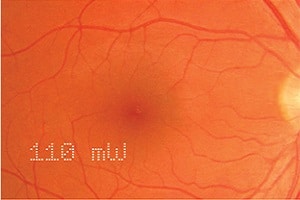

Array LaserLink Heads Up Display

Heads Up Display

Confirms changes to treatment parameters
Displays text on the retina
Modified parameters are projected as text onto the retina

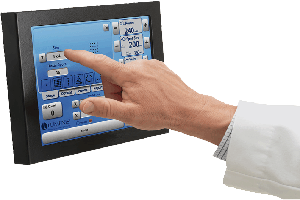

Array LaserLink Intuitive Touchscreen

Intuitive Touchscreen

Fully adjustable monitor
Is easily reached and visualized for treatment set up and procedure
