Slit Lamps

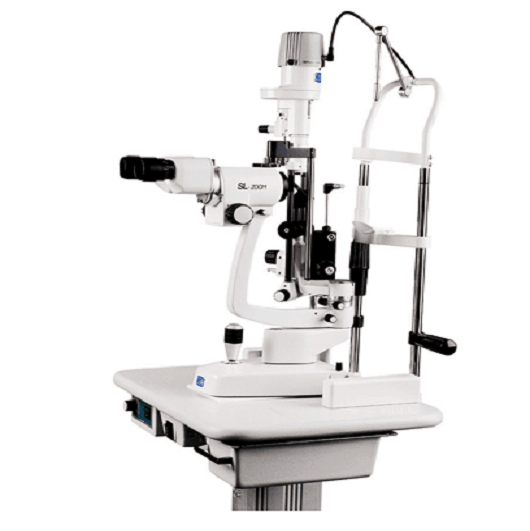

Lumenis 980

Parallel optics (Zeiss style) diagnostic slit lamp

Compatible with Lumenis photocoagulators and pattern scanner: Smart532™, Novus Spectra, Vision One™ and Array™ LaserLink™
5X magnification changer
Table: wheelchair accessible with adjustable height and locking castor wheels
Universal 100-240V input power

Optional additions:

Choice of automatic or fixed eye safety filters
LaserLink Z: 50-1000 μm spot size, containing SureSpot™ optics and micromanipulator with finger rest

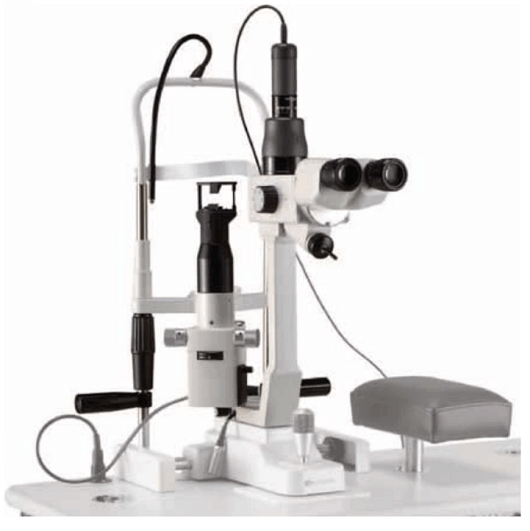

Lumenis 1000

Parallel optics (Zeiss style) fully integrated diagnostic slit lamp

5X magnification changer
Compatible with Lumenis photocoagulators: Smart532™, Novus Spectra and Vision One™
Table: wheelchair accessible with adjustable height and locking castor wheels
Universal 100-240V input power
Built-in micromanipulator
Transferable (right or left) elbow rest
Built-in three-wavelength automatic eye safety filter (532nm, 577nm, 659nm)
LaserLink Z: 50-1000 μm spot size, containing SureSpot™ optics

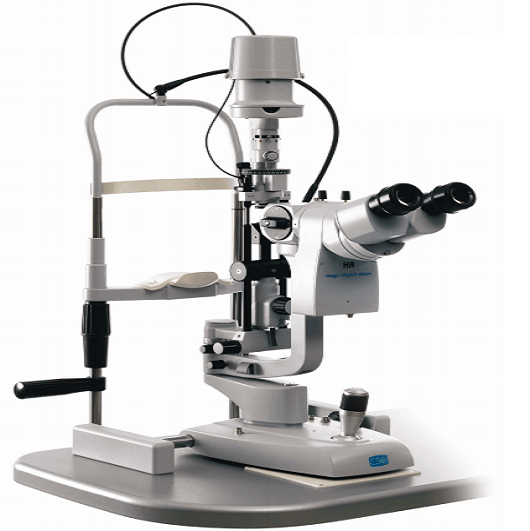

Lumenis 990

Convergent optics (Haag-Streit style) diagnostic slit lamp

Available in 2X, 3X and 5X magnification changer
Compatible with Lumenis portable SLT and photocoagulators: Selecta II, Smart532™, Novus Spectra and Vision One™
Tonometer mount included
Table: wheelchair accessible with adjustable height and locking castor wheels
Universal 100-240V input power

Optional addition:

LaserLink HS: 50-500 μm spot size, containing SureSpot™ optics and fixed eye safety filter

SL 130

Original Zeiss, parallel optics, diagnostic slit lamp

5X magnification changer
Compatible with Lumenis photocoagulators and pattern scanner: Smart532™, Novus Spectra, Vision One™ and Array™ LaserLink™
Table: wheelchair accessible with adjustable height and locking castor wheels
Universal 100-240V input power

Required additions:

Choice of automatic or fixed eye safety filters
LaserLink Z: 50-1000 μm spot size, containing SureSpot™ optics and micromanipulator with finger rest

Laserlink Slit Lamp Adapters

Laserlink Slit Lamp Adapters
Your Favorite Slit Lamp into a Laser Delivery System

SureSpot optics deliver a sharp-edged laser spot with even power distribution to the retina and low power density at the cornea

High-visibility physician filters provide continuous visualization of the retina, enhanced treatment precision, and full protecti”Slit Lampson for the surgeon during photocoagulation

LaserLink HS compatible with most slit lamps: Topcon SL-3E, Topcon SL-7E, Macro III, Mentor SH-12, Nikon NS-1, Nikon FS-3 and more

LaserLink Z compatible with the following slit lamps: Zeiss 20 SL, Zeiss 30 SL M, Zeiss 125, Zeiss SL 130
Covergent Optics Laser Link
The Covergent Optics Laser Link Slit Lamp Adapter expands treatment options by converting an existing an slit lamp into a precise laser delivery system, for details on which slit lamps can be converted contact your local Lumenis representative. Its patented SureSpot Optical Beam design ensures uncompromised laser delivery, while-high visibility physician filters provide an enhanced view of the treatment site with full protection for the surgeon during photocoagulation.

Clearview filters to eliminate color distortion of the treatment site while optimizing white light transmission, or “brightness,” of the physician’s view

Fixed Eye Safety Filter included

True 50 µm-500 µm micron telescope spot size with continuously variable spot-size adjustment for a wide variety of treatment parameters

Dichroic mirror to improve access to the far periphery and coaxial visualization

LaserLink that rotates out of the way for convenient diagnostic use of the slit lamp
Laser Link-Z
The Laser Link Z Slit Lamp Adapter expands treatment options by converting an existing Zeiss style slit lamp into a precise laser delivery system. Its patented SureSpot Optical Beam design ensures uncompromised laser delivery, while-high visibility physician filters provide an enhanced view of the treatment site with full protection for the surgeon during photocoagulation.

SureSpot optics to deliver a sharp, well-defined beam to the retina while assuring minimal power density to the cornea

Clearview filters to eliminate color distortion of the treatment site while optimizing white light transmission, or “brightness,” of the physician’s view

True 50 µm-1000 µm micron telescope spot size with continuously variable spot-size adjustment for a wide variety of treatment parameters

Optional automatic or fixed eye safety filters

Self-centering Micromanipulator

Learn More

	Lumenis 980 Parallel Optics	Lumenis 1000 Parallel Optics, Fully Integrated	Lumenis 990 Convergent Optics	SL 130 Zeiss Original
Magnification	5X	5X	2X / 3X / 5X	5X
Compatible Devices	Smart532™ Novus Spectra Vision One™ Array™ LaserLink™	Smart532™ Novus Spectra Vision One™	Selecta II Smart532™ Novus Spectra Vision One™	Smart532™ Novus Spectra Vision One™ Array™ LaserLink™
LaserLink*	LaserLink Z: 50-1000 μm spot size	LaserLink Z: 50-1000 μm spot size	LaserLink HS: 50-500 μm	LaserLink Z: 50-1000 μm spot size
Eye Safety Filter (ESF)**	Choice of automatic or fixed	Built-in automatic	Fixed, part of the LaserLink	Choice of automatic or fixed
SureSpot™ Optics
Table	Wheelchair accessible with adjustable height and locking castor wheels
Input Power	Universal 100-240V
Micromanipulator	Part of LaserLink Z	Part of slit lamp	None	Part of LaserLink Z
