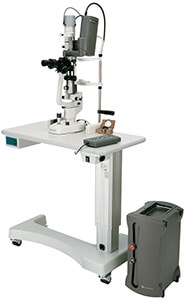

Selecta II

Portable, Clip-on, SLT Laser

The Selecta II offers you all the advantages of a premium SLT product, with true portability and optimal space utilization.

The Selecta II is a clip-on product, conveniently fitting onto most commercially available convergingoptics style slit lamps. The unique design of the unit’s laser head makes for especially easy system attachment and disconnect, allowing physicians to use the slit lamp as a diagnostic tool, an advanced laser delivery device or both.

Additional Features

Meeting Your Preference

The Selecta II is compatible with your preferred Slit Lamp, allowing you to diagnose and treat with your unit of choice.

Optimal Visualization

The Selecta II is compatible with most commercially available converging-optics style slit lamps, capitalizing on their enhanced visualization capabilities of the anterior segment.

True Portability

Weighing only 25 lbs. (11.5 Kg), the Selecta II can be easily transported from one location to another, maximizing your investment.

Space Saving

The Selecta II is a clip on laser, compatible with most commercially available converging-optics style slit lamps. Easily connect it to your existing diagnostic slit lamp to perform SLT and stow away at the end the procedure or scheduled laser sessions.

Lumenis SLT

Selective Laser Trabeculoplasty (SLT) technology was developed and brought to market by Lumenis, based on the work of Dr. Mark Latina, MD, et.al.

Today, Lumenis prides itself as the company with the most robust clinical data on SLT, the largest global installed-base of SLT products, the widest range of added-value products & services to maximize SLT potential in your practice – including robust patient education collateral & multimedia – and much more!

When you buy an SLT product from Lumenis, you gain immediate access to the largest network of SLT users worldwide, receive product upgrades & updates, advance-notice invitations to SLT symposia & workshops all around the world and a long list of other benefits which are exclusive to Lumenis SLT customers. Furthermore, all Lumenis SLT products were designed to meet the clinically recommended SLT treatment protocol that we have helped to shape. Buying a Lumenis SLT product guarantees your ability to customize treatment on a case-by-case basis and meet SLT treatment protocol requirements.

The Clinical Advantages of Lumenis SLT

Selective Laser Trabeculoplasty (SLT) is a clinically proven laser treatment to reduce IOP without coagulating the Trabecular Meshwork. SLT represents an evolution over previous laser therapies as it can be safely repeated if needed.

Mechanism of Action:

Lumenis SLT technology uses a Q-switched, frequency-doubled Nd:YAG; 532 nm wavelength green laser. When applied to the target tissue, the laser is selectively absorbed by melanin-containing pigmented cells in the Trabecular Meshwork, without causing thermal or coagulative collateral damage to adjacent tissue. The increase in expression of biological cytokines and cellular mediator activities following laser irradiation recruit macrophages to the Trabecular Meshwork. In turn, macrophages remove obstructive proteins and remodel the Trabecular Meshwork, improving aqueous humor outflow and, thereby, reducing intraocular pressure (IOP)

More Information

  YAG Photodisruptor Mode SlT Mooe Photocoagulator Mode
laser Source Q-Switched Nd:YAG Q-Switched Frequency Doubled Nd:YAG Diode-PumpedSolid State (DPSS)
Wavelength 1064nm 532nm 532nm
Energy (power) 3mJ - lOmJ per pu se 0.3- 2.0ml per pu se,continuouslyvariable in 0.1increments 50- 2500mW
Pulse Duration 3ns (nanoseconds) 3ns{nanoseconds) 0.01 - 3 seconds
Burst Mode 1,2 or 3 pulses per burst (selectable) Single Pulse Not Applicable
Spot Size Spot Size 8 microns 400 microns 50 -1000 on Z-link;5-500 on Convrg-link
Cone Angle 16 degrees <3 degrees Not Applicable
Posterior Offset O - 350 microns (continuously variable) Not Applicable Not Applicable
Repetition rate 3Hz (in single burst) 3Hz Not Applicable
Pulse Rate Not Applicable Not Applicable 0.05 - 1second & Single Pulse
Aiming Beam Red Diode, continuously variable adjustable intensity Red Diode, continuously variable adjustable intensity Red Diode, continuously variable adjustable intensity
Pulse Rate Not Applicable Not Applicable 0.05 - 1second & Single Pulse
Coating Air Cooled Air Cooled Air Cooled, enhanced with TfC
ElectricalRequirements 100 -240 VAC, 50/60 Hz,3.15 Amps 100 -240 VAC, 50/60 Hz, 3.15 Amps 100 -240 VAC, 50/60 Hz, 3.15 Amps
CDRH Classification FDA lllb FDA lllb FDA lllb
Selecta 11 laser module 28 cmx 18 cm x 13 cm {11 in x 7 in x 5 in), aser console 43 cm x 22 cm x 30 cm {17 in x 8.5 in x 12in) Total system weight 11kilograms (25 pounds)
Selecta Duet Table height Wheelchair accessible 945 mm max, 695 mm min, travel -250 mm (37.8 in max, 27.4 in min,travel-10.4 in) Table width Small: 630 mm (24.8 in) Medium:880 mm (34.5in),Table depth Small:400 mm (15.7 in) Medium:450 mm (17 8in),Table wheel base Small:520mmx 440 mm (20.4in x 17 2in).Medium:460 mm x 830 mm (18.1in x 32.7in), Total system weight <60 kg
Novus Spectra Heigllt 15 2 cm (6in), Width25.4 cm (10in), Depth(Single port S'l'tem) 35.6 cm (14in), Depth (Dualport system) 37.5 cm (14.5 in), We ght 8 kg (17lb)

Lumenis First Class Quality

Our passion for opthalmic lasers date back more than 40 years! At Lumenis, we truly understand multi-wavelength photo-coagulation-technology; that is after all only one of the privileges reserved for the foremost pioneer in this field. It is also precisely the reason why the decisive majority of general ophthalmologists and retina specialists around the globe have actively chosen to purchase Lumenis multi-color lasers – making Lumenis the global market leader and the company with the largest installed-base of multi-color ophthalmic laser products worldwide.

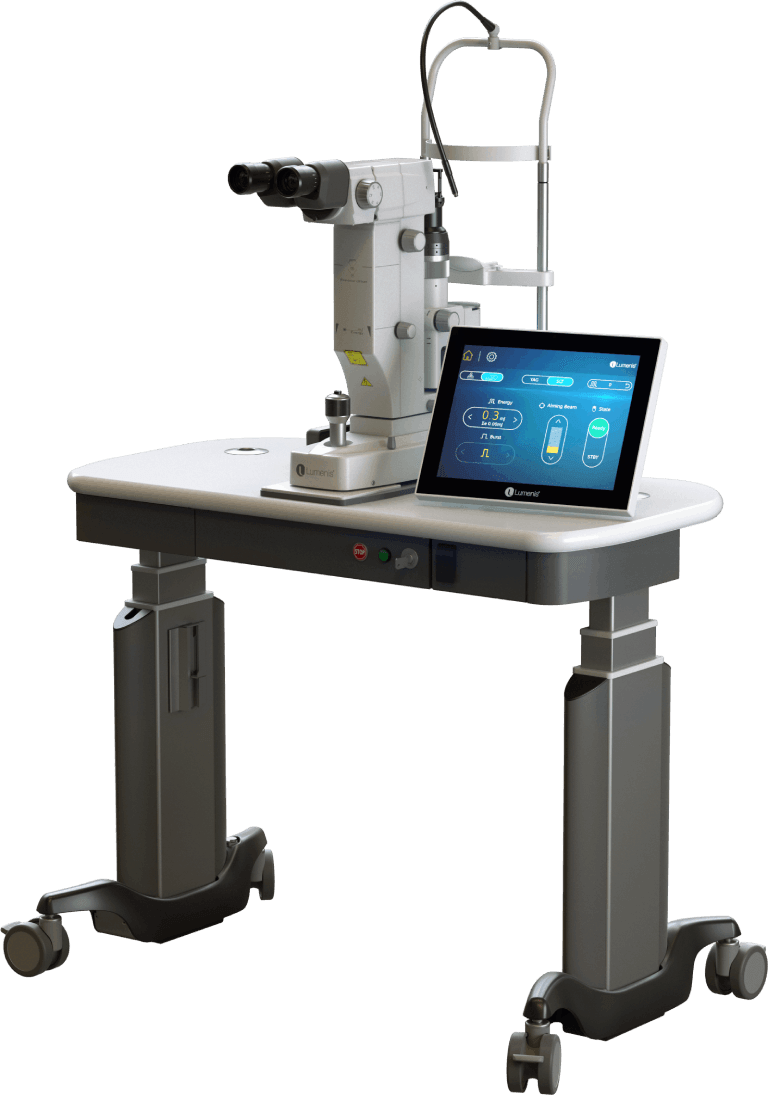

Smart Selecta Duet

SLT + YAG
Your Smart Selection for Glaucoma Care

Learn More

Smart Selecta Trio

SLT + YAG + Smart532™
Your Smart Comprehensive Solution

Learn More
Related Links
Lumenis SLT

Caution: Federal (US) law restricts Lumenis devices to sale by or on the order of a licensed practitioner.

PB-2006798 Rev A
